| Fixed tube-sheet exchanger | | |

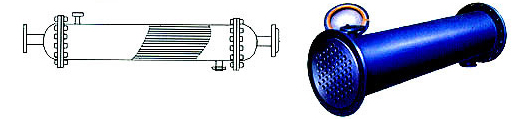

| Fixed tube-sheet exchanger by condensing material into carbon steel tube, stainless steel tube and carbon steel and stainless steel mixing condenser tube condensation of three, according to the form is divided into horizontal, vertical heat exchanger Device, according to the structure into a single tube pass, dual-way and multi-tube process. Heat transfer area of 0.5-500m2, can be customized according to user needs. |
|
|
| Nominal diameter |
Tube side
Number |
Tube
Quantity |
Nominal value of the heat transfer area / calculated value |
Tube side channel flow channel cross-sectional area tube passes
When the flow velocity is 0.5m/sec m / hr |
Nominal pressure |
| Tube length（m） |
φ25×2.5 |
| 1500 |
2000 |
3000 |
4000 |
6000 |
φ25×2 |
| 159 |
1 |
14 |
1.51.62 |
22.17 |
33.27 |
|
|
0.0044/0.0049
|
7.92/8.82 |
0.25 |
| 219 |
1 |
26 |
3/3.00 |
4/4.02 |
6/6.06 |
8/8.1 |
|
0.0082/0.0090 |
14.76/16.20 |
0.6 |
| |
2 |
26 |
3/3.00 |
4/4.02 |
6/6.06 |
8/8.81 |
|
0.0041/0.0045 |
7.38/8.01 |
1.0 |
| 273 |
1 |
44 |
5/5.08 |
7/5.18 |
10/10.26 |
14/13.72 |
21/20.63 |
0.0138/0.0152 |
24.84/27.36 |
1.6 |
| |
2 |
40 |
5/4.62 |
6/6.19 |
9/9.33 |
12/12.47 |
19/18.76 |
0.0063/0.0069 |
11.24/12.42 |
2.5 |
| 325 |
1 |
60 |
7/6.93 |
9/9.28 |
14/14.00 |
19/18.71 |
28/28.13 |
0.0188/0.0208 |
33.84/37.44 |
0.6 |
| |
2 |
56 |
6/6.47 |
9/8.66 |
13/13.05 |
17/17.46 |
36/26.26 |
0.0088/0.0097 |
15.84/17.46 |
1.0 |
| 400 |
1 |
119 |
14/13.47 |
18/18.41 |
28/27.76 |
37/37.10 |
55/55.8 |
0.0374/0.0412 |
67.32/74.16 |
1.6 |
| |
2 |
110 |
13/12.70 |
17/17.02 |
26/25.66 |
34/34.20 |
50/51.58 |
0.0173/0.0190 |
31.14/34.20 |
2.5 |
| 500 |
1 |
185 |
|
|
45/4.15 |
55/57.68 |
85/86.74 |
0.0581/0.0641 |
104.58/115.38 |
|
| |
2 |
180 |
|
|
40/41.99 |
55/57.68 |
85/86.74 |
0.0283/0.0312 |
50.94/56.16 |
|
| 600 |
1 |
269 |
|
|
60/62.7 |
85/83.88 |
125/126.13 |
0.0845/0.0932 |
152.10/167.76 |
|
| |
2 |
266 |
|
|
60/32.05 |
80/82.94 |
125/14.72 |
0.0418/0.0461 |
75.24/83.98 |
|
| 700 |
1 |
379 |
|
|
90/88.41 |
120/118.17 |
175/177.71 |
0.0091/0.1313 |
214.38/236.34 |
|
| |
2 |
358 |
|
|
85/83.51 |
110/111.62 |
165/167.85 |
0.0562/0.0620 |
101.16/111.60 |
|
| 800 |
1 |
511 |
|
|
120/119.20 |
160/159.16 |
240/239.60 |
0.1605/0.1770 |
288.90/318.60 |
|
| |
2 |
488 |
|
|
115/113.83 |
150/152.16 |
230/228.81 |
0.0767/0.0845 |
138.06/152.10 |
|
| 900 |
1 |
649 |
|
|
150/151.39 |
200/202.36 |
305/304.3 |
0.2039/0.2248 |
367.02/404.46 |
|
| |
2 |
630 |
|
|
145/146.96 |
195/196.44 |
295/295.40 |
0.0990/0.1091 |
178.20/196.38 |
|
| 1000 |
1 |
805 |
|
|
185/187.78 |
250/251.00 |
375/377.45 |
0.2529/0.2788 |
455.22/501.74 |
|
| |
2 |
792 |
|
|
185/184.75 |
245/246.95 |
370/371.36 |
0.1244/0.1374 |
223.92/246.96 |
|
|
|
