First, the main purpose
This device is suitable for pharmaceutical, food, light industry, chemical industry, dilute alcohol recovery. Also applicable to other solvents such as methanol distillation. The device according to the user's requirements, may be about 30 ¡æ dilute alcohol distillation to 90 ¡ã ~ 95 ¡ã alcohol, refined requirements of the higher alcohol content, can increase the reflux ratio, but production will be reduced accordingly.
Second, structural characteristics and technical performance of equipment
Device Features:
The device uses highly efficient ceramic or stainless steel packing. Distillation tower made of stainless steel to prevent the phenomenon of the iron block filler to extend the period of use the device. The device of equipment parts in contact with alcohol, such as condensers, voltage regulators, tanks, cooling coil all adopts stainless steel to ensure that alcohol products are not contaminated. W-type distillation kettle heated with removable U-tube, in maintenance can be heated U-tube out of the kettle, the ease of heating the inner wall of the outer wall and clean the distillation kettle. ZW-type distillation kettle indirect heating is omitted.
Condenser tube heat exchanger used can also be supplied according to user requirements spiral plate heat exchanger. Cooler by cooler coil, and supporting the determination of specific gravity supply tank and regulator device.

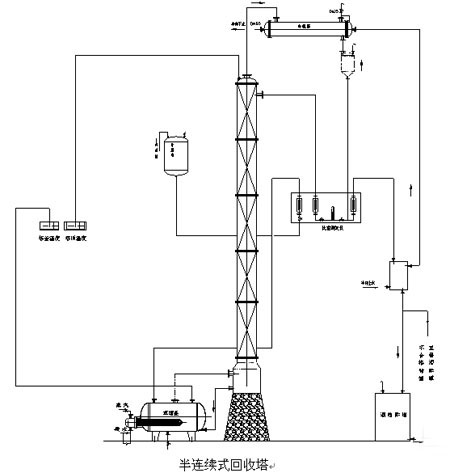

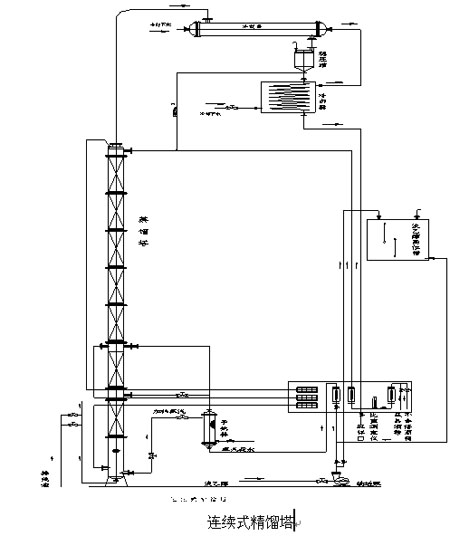

Other auxiliary equipment such as: measuring cans, alcohol and other user-owned storage tanks. I also can supply the user requires further processing. W-batch production can also be semi-continuous production. ZW-type for the continuous production.
Third, the technical parameters
* feed concentration: 30 ¡ã¡« 80 ¡ã
* the expected concentration: 90 ¡ã¡« 95 ¡ã
|
