The main disposal of hazardous gas scrubber, hydrogen chloride gas and hydrogen fluoride gas, chromic acid mist, hydrogen cyanide gas, hydrogen sulfide, ammonia, steam and other water-soluble alkali gases. Absorption of sodium hydroxide and liquid, solution concentration of 2-6%, the removal efficiency of 95% or more.
It has the effect of high corrosion resistance, high strength, low noise, low power consumption, small size, easy disassembly and maintenance, lightweight and durable, nice shape and so on.
Structure

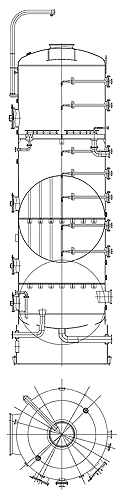

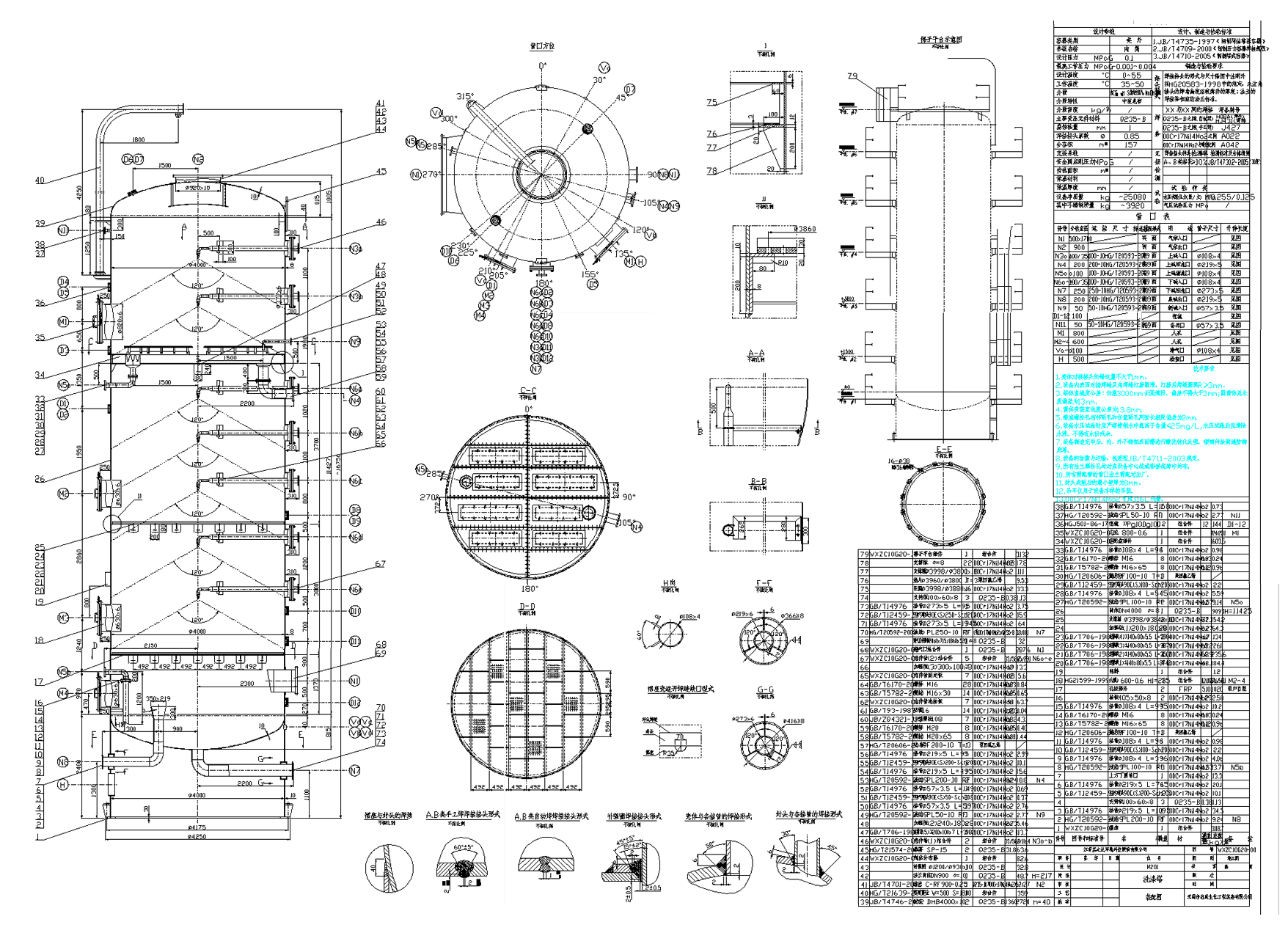

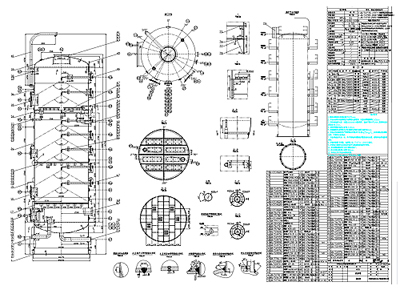

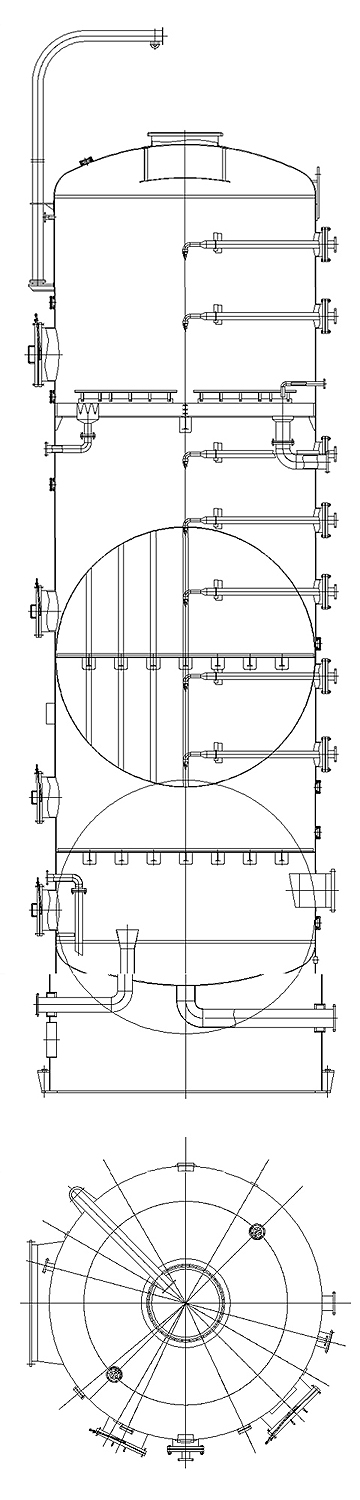

The tower from the round tower, with a connection from the flange section. Specific structure of the storage tank, into the wind section, two spray section, cyclone, a wind cone hat and so on. Its characteristics are: production convenience, ease of maintenance at fitted, high strength, small footprint. Spray form using double packing, two spray, liquid full access to the right to use and improve the cleaning efficiency.
StructurePurification principle and the principle that the order process
(1) suction hood - the inlet pipe - fans - into the first filter layer of the wind section - second paragraph of the filter layer cyclone - the hood cover - exhaust pipe
(2) How it works:
The device used for the absorption of sodium hydroxide solution and the solution to purify the acid mist emissions. The pressure from the centrifugal fan air into or inhaled into the air section, and then move upward, to the first filter layer, with the first stage exhaust nozzle and the fluid in the contact reaction. After absorbing the exhaust continue to move upward to the second filter layer, and the second level in the exhaust nozzle and liquid contact, the recurrence of and reaction, and then through the cyclone. From the hood and the exhaust pipe or fan into the atmosphere.
