Overview:
This machine is my factory in the digestion and absorption of foreign advanced equipment and technology developed on the basis used to dry and sticky paste, cake-like and thixotropy, a new type of heat sensitive powder granular materials drying equipment. The factory has a prototype, the material can be dry for the user to experiment, to provide data and assistance in selection.

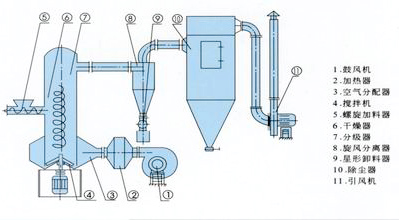

Principle: Working Principle: Tangent hot air into the bottom of the drier to form a powerful blender driven by the rotation of the wind field. Material from the screw feeder into the dryer, high speed rotary stirrer in the strong effect of the material by impact and friction and shear force, the material quickly crushed, with full access to hot air, heated and dried. After dehydration with hot air rising dry material, grading ring to retain a large granule, small particles emitted from the ring center dryer, the recovery from the cyclone separator and dust collector, not dry or bulk materials, the wall by centrifugal force Shuaixiang , fell to the bottom of the crushed dried again.

Features: Cyclone, fluidized, spout and smashing combination of classification techniques. The equipment is compact, small size, high efficiency, continuous production, achieved a small equipment, large-scale production. Dry strength, low energy consumption, thermal efficiency up to 70% or more. "energy-saving equipment. " Material residence time is short. Quality of finished products can be used for drying heat sensitive materials. Negative or slightly negative pressure operation, confined, high efficiency, eliminate environmental pollution. Block or paste materials can be directly dried into powder, saving post-treatment processes such as grinding mills.

No Application:
Organic compounds: acetyl guanidine amine, lauric acid barium, benzo guanidine amine, benzoic acid, calcium stearate, cellulose acetate, lead acetate, diphenyl guanidine, lignin, polyvinyl acetate, ethylene ester, grass sulfate, carbon black, refused to Gouache, rose bromamine, DSD acid, J acid
No organic compounds: aluminum hydroxide, lead phosphate, aluminum phosphate, zinc phosphate, aluminum silicate, silica, barium carbonate, calcium carbonate, manganese carbonate, carbonate, potassium carbonate, strontium carbonate, charcoal, copper sulfate, lead sulfate, manganese sulfate , Barium sulfate, sodium thiosulfate, sodium sulfate, tribasic, lime, antimony trioxide, antimony pentoxide, two chromium oxide, manganese dioxide, manganese oxide, iron oxide, iron disulfide, and more ammonium alum, lead-acid Bismuth, boric acid, cryolite, dolomite, jarosite, silver halide, antimony sodium zeolite, cornstarch, basic zinc carbonate
Pigments and dyes: anthraquinone, anthraquinone, H acid, T acid, single-azo dyes, two azo dyes, three azo dyes, fluorescent yellow S, iron oxide black, chrome orange, direct black, zinc chromate , chromate of lead, zinc, barium white, nitro dyes, nitroso dyes, iron oxide red, strontium chromate, titanium dioxide, ultramarine blue, black iron oxide, zinc sulfide, reactive red, X - 3B, Mordant Black T , Reactive Brilliant Blue KN - R, phthalocyanine blue, phthalocyanine green, copper, titanium Qing, lemon yellow, red Seoul Li Su, cationic brilliant blue RL
Medicine: aminopyrine, 4 - amino-benzene Potassium acid, 4 - aminobenzoate potassium acetate, lead-acid, chloramphenicol intermediate
Pesticides: atrazine, Bordeaux mixture, folpet, the amount of herbicides, pesticides Dan, triphenyl tin acetate
Ceramics: alumina, clay, kaolin, silica, zirconium silicate
Waste: Biological mud, manganese slag, manganese residues of uronic residue, residue of saponin

Specifications
