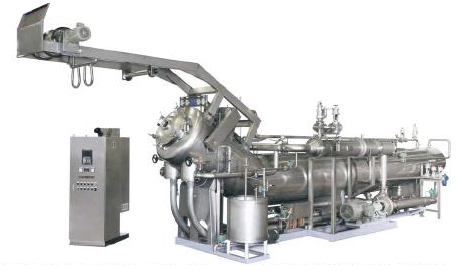

The latest developed dyeing machine Jet flow system,Wide applications both for woven and knitted fabrics suchas Nylon, Polyester, Rayon, Suede or blended.Features
Single head twin dyeing chamber designing Fabric dyedcolor difference problem will be much improved in thisdesigning, the circulation time can be uniform. Smallloading capacity and high Liquor Ratio Problem can beSolved in GYX machine.Low Machine Covered Area, High ProductionSingle Head, Twin dyeing chamber designing, Compareto traditional designing, Less area required and High Production Available (4 Chamber Model )Low tension designing
Step 1 Fabrics moving forward till the Water-Fabric Separate Device, In this period Fabric water contained in minimum percentage so Fabric Weight will be much lighter then in the immersed condition Step 2 the driving reel pull up the fabric and send to main Jet Flow nozzle system In the minimum distance ,Under this principle, fabrics will run in high Speed, Low-tension condition.Superior fabric Dyeing quality and Processed hand feeling Excellent fabric running condition and stability, Less chance of fabric entanglement Wide Application for dyeing various type of fabrics(For light fabric ,adjust less loading capacity is necessary for corresponding the cycle time 3 minutes limits)
