| GYS-400High-temperature and high-pressure liquid dyeing machine | | |
Rapid Dyeing System with Lowest Liquor Ratio & High Running Speed
The fabrics float in the dye without contacting the interior walls of the tank. This accelerates the dyeing process up to 600m/rain without pills. Specially designed corrugated board(W-type) of the fabric storage tube reduces the friction coefficient between the fabrics and interior walls of the tube to accelerate the dyeing process, so the liquor ratio can also be adjusted to 1:5-8 for customers process requirement.
Lowest Tension & Large Flow-Quantity
In dyeing, we use overflow nozzle with lowest pressure, that reduce tension, pilling &yarn sliding of fabric, we supply varied size of nozzle for customer's demand.
No Rolling-Selvedge and Crease Mark
The fabric extending device extends the fabrics after beating preventing rolling selvages and pills. This is suitable for TRICOT. Easy Operation
The Electric board is applied with micro-computer control, therefore operation is very easy. It can also be auto-dosing control (supply continue dosing quality, option), and quickly fill/drain, hot water tank (option) to reduce total dyeing time, that enhance production yield.
Precise Speed Control
Efficiently-functional direct-flow motor can help previously choose twist strength within certain speed ranges and adjust it between speed. Therefore, fabric movement, speed and textile directing roll are in the simultaneous pace, which can avoid usual flaws cause by rubbing on material surface. |
 |
| ITEM |
MODEL |
GYS-1
50 |
GYS-1
100 |
GYS-1
200 |
GYS-1
400 |
GYS-1
800 |
GYS-1
1600 |
| MAX TEMPERATURE |
140¡æ |
140¡æ |
140¡æ |
140¡æ |
140¡æ |
140¡æ |
| MAX PRESSURE KG/CM2 |
4 |
4 |
4 |
4 |
4 |
4 |
LIQUOR(LIT)
|
200-400 |
400-600 |
800-1200 |
1600-2400 |
3200-4800 |
6400-9600 |
| CAPACITY(KG) |
40-50 |
80-100 |
160-200 |
320-400 |
640-800 |
1280-1600 |
| MAIN PUMP MOTOR(HP) |
7.5 |
15 |
15 |
25 |
50 |
75 |
| HEATING RATE 25-98¡æ/min |
20 |
20 |
20 |
20 |
20 |
20 |
| COOLING RATE 98-60¡æ/min |
15 |
15 |
15 |
15 |
15 |
15 |
| FABRIC SPEED(M/min) |
700 |
700 |
700 |
700 |
700 |
700 |
| STEAM KG/CYCLE |
68 |
137 |
274 |
550 |
1100 |
2200 |
| COOLING WATER(LIT) |
328 |
655 |
1310 |
2620 |
5040 |
10080 |

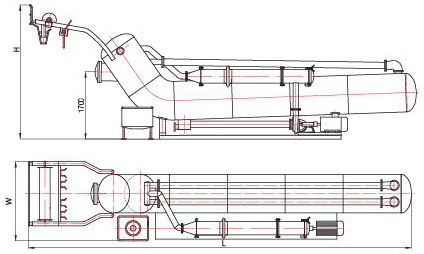

SPACE
|
L |
6296 |
7522 |
9046 |
9311 |
9311 |
9348 |
| REQUIRED |
W |
1566 |
166 |
1566 |
1815 |
3051 |
5882 |
| M.M |
H |
2675 |
2675 |
2675 |
2960 |
2960 |
2960 |
|
| If the listed specification has any changes, our company has right to modify without notification at any time. |
