| GQN-450High-temperature and high-pressure airflow dyeing machine | | |
 |
Air power and airflow dyeing atomize the mixed air flow of the airflow and overflow in nozzle. Because of no liquid circulation, the ultralow bath ratio of dyeing liquid comes true. So we can dye fabrics in spray pattern of dyeing liquid which suits for cottons, mixed fabric, blended fabric, ultrafine fabric and chemical facsimile fabric. This machine has high automation, high efficient environment protection, saving energy. Compared with common jet dyeing machines, it can save water around 50% and shorten dyeing time about 50% more with high dyeing efficiency and good reappearance.
|
Main features
The equipment is of high efficiency, low bath ratio, low tension and transmission speed of airflow fabric is more than 350m/min.
The bath ratio of cotton fabric is 1:4, the bath ratio polyester fabric dyed is 1:2. Low liquid volume, slight weight and small tension are companioned with the fabrics when driving.
Scratch-proof, anti-block, airflow inclined pipe using
dyeing overflow make the fabrics float. Spray device is set up in outlet of airflow inclined pipe using dyeing liquid to rock fabric and polytetrafluoroethylene to cover the fabric in storage area.
It can be filled and discharged under the condition of high temperature and high pressure. During waste water
discharge, fill in clean water with high efficiency washing.
Special nozzle configuration with wide fabric usage, good technology, and unique airflow performance can make the contractile of knit fabric and fullness of machine fabric droop, loose, and comfortable touching.
The variable speed of the computer's frequency conversion program, drive roll, fan, circulation pump and dyeing are automatic controlled.
Special computer for advanced inlet airflow dyeing
machine, with flexibility, convenient, programmable,
modification, storage and high precision temperature
self-control. Fine dyeing technical control and centre
control.
|
 |
|
 |
Characteristics
type£ºhorizontal and Cylindrical(20r4tubes)
Inside diameter of dyeing vessel£º2300mm
Max£®cloth capacity£º225kg/tube
Fabric linear speed£º40¡«700m/min
Liquor ratio£º1:3~1:4
Max£®working temperature£º140¡æ
Max£®working pressure£º0.35MPa
Steam pressure£º0.35MPa
Compressed air pressure£º0.4~0.6MPa
Installed power£º59kw
Overall dimensions(LXWX H)£º5900X 5000X 4300mm |
|

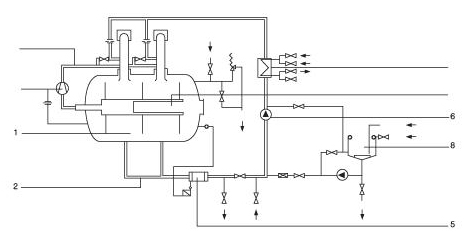

1. Dyeing
5. Dye filter
|
2. Circulation system
6. Main bath pump
|
3. Blower
7. Air filter
|
4. Heat exchanger
8. Addition tank |
|
