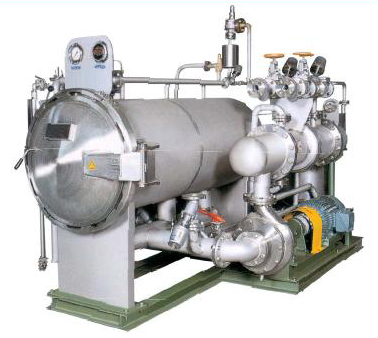

| GQN-450High-temperature beam dyeing machine | | |
 |
Purpose
GTM high-temperature multipurpose beam dyeing machine is mainly used for economical dyeing of various fibers. It is applicable to dye, bleach and preliminarily treat open width fabric with nontension. It supplies the best conditions of dyeing and bleaching for sensitive fabric, tatting fabric, knitted fabric, non-woven fabric and easy-deformed, easy-rolled fabric.
Main Features
1. Wide application; it is applicable to nylon, Tatian silk, noble silk£¬silk broadcloth£¬bright silk, plain woven fabric£¬ polyester fabric£¬Lanka stretch fabric, Oxford, computerized
embroidery lace fabric and warp-knitting fabric
2. Reasonable sampling device for sub sample with easy set and handy sampling.
3. Adjustable loop structure to ensure the adjustment of various breadth fabrics.
4. The special computer of GTM dyeing machine is easy to control, during dyeing, raising and decreasing temperature, filling, draining, washing, charging and inside and outside pressure difference set can be full automatic operation, as a result the negligence by operators is reduced.
5. The diameter of dyeing vessel is up to ¦µ400mm~¦µ 1600mm, the breadth of fabric and the required length of cylinder are designed in according with user's demands. |
 |
| ITEM/MODEL |
GTM-400 |
GTM-711 |
GTM-1050 |
GTM-1200 |
GTM-1300 |
| (Max. pressure)kg/cm2 |
5 |
5 |
5 |
5 |
5 |
| (Max. temperature)”ę |
140 |
140 |
140 |
140 |
140 |
| (Electric wastage)kw |
30 |
40 |
60 |
80 |
80 |
| (Water dosage)Liter |
120-200 |
500-700 |
1200-1700 |
1600-2200 |
1900-2600 |
| (Steam dosage)kg |
60 |
120 |
200 |
390 |
500 |
| (Body diameter)mm |
400 |
700 |
1050 |
1200 |
1300 |
| (W)mm |
1300 |
2000 |
2150 |
2150 |
2150 |
| (L)mm |
3780 |
3780 |
4050 |
4580 |
4680 |
| (H) |
1150 |
1730 |
1925 |
1925 |
1925 |
|
